SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH
Specifications JDS-6615RGBW
Color | RGB/RGBW |
Operation Voltage | DC 12V |
Current Dissipation | 0.06A |
Power Dissipation | 0.72W |
Viewing Angle | 160° |
Luminous Flux(Im) | 60Lm |
Operating Temperature | -20-65℃ |
Storage Temperature | -30-80℃ |
Waterproofing | IP67 |
Dimension | 66Lx15Wx6.5H mm |
Weight | 10g |
Pruduct Features
-Good optics(bat-wing lens)design to achieve good opticalperformance.
-Can be Red/Green/Blue/White light,5years warranty -IP67 waterproof.
-50 modules per chain.

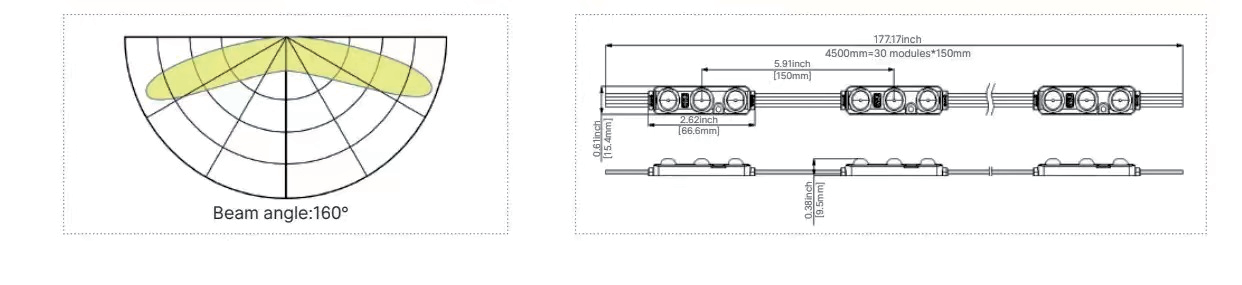

Optical Data Distribution
Product Dimension

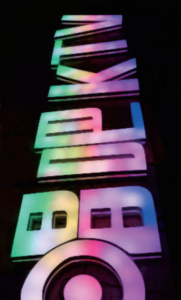

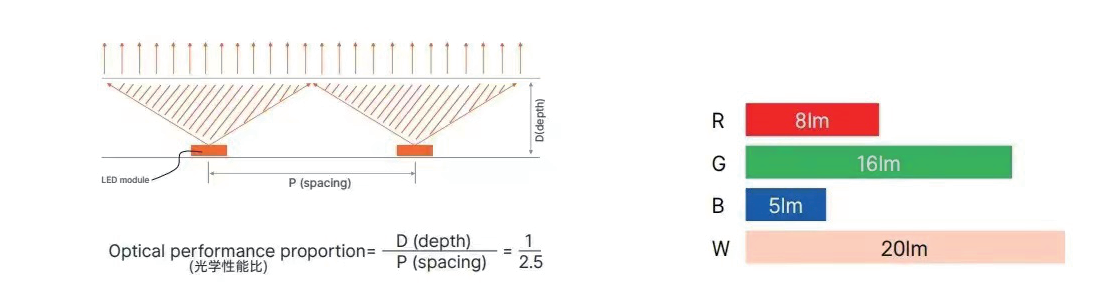

Application Notes
