SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH
Specifications

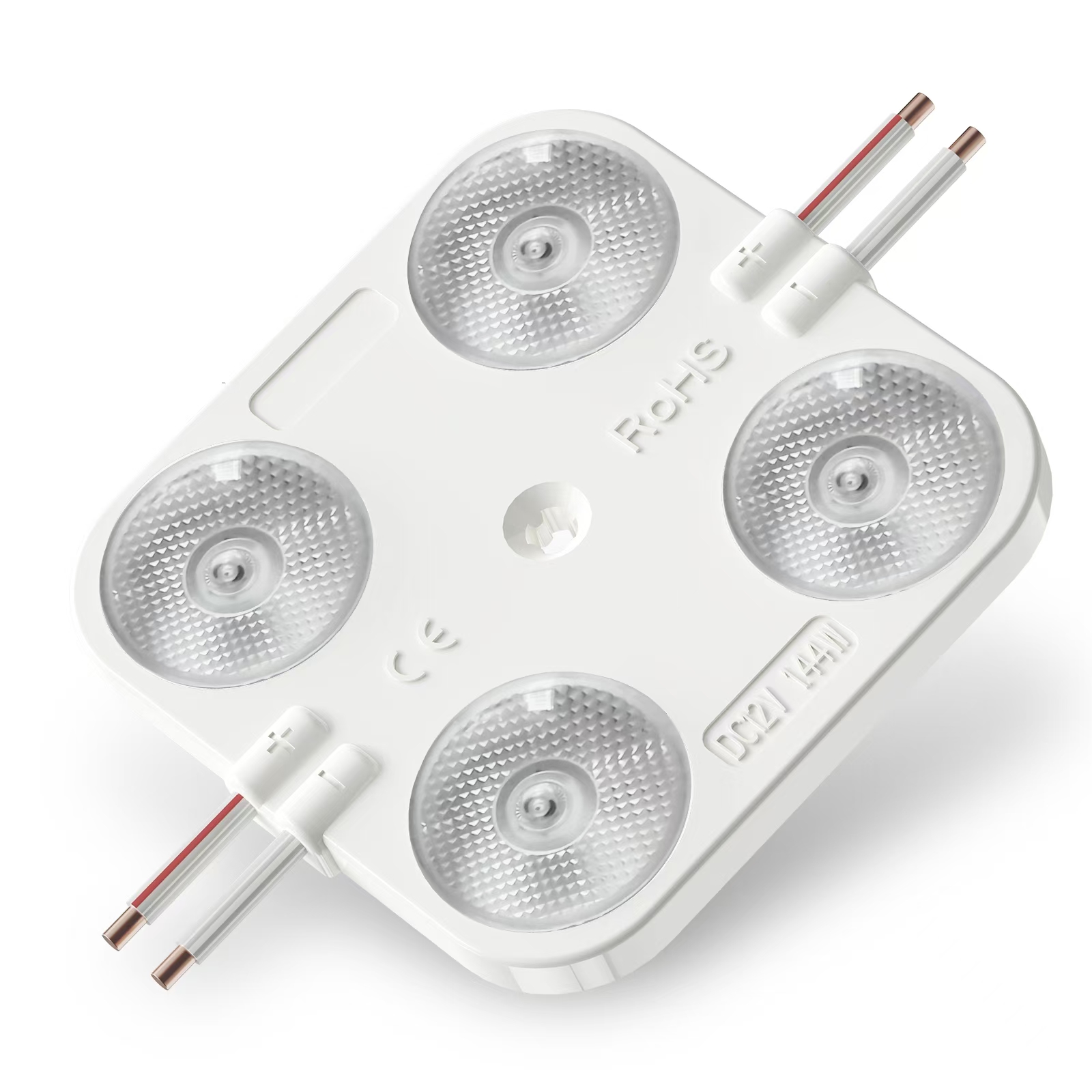

JDS Bezel-Free Series 4543B
Input Voltage | DC12V/24V |
Power | 1.44-4W/PCS |
Luminous | 170lm/W |
Beam Angle | 175° |
Waterproof Grade | IP67 |
Size | 45x43x7mm |
Operating Temp. | -20°~+50℃ |
Storage Tamp. | -30°~+80℃ |
Cascade QTY | 20 mods single-ended power feed |
50 mods double-ended power feed | |
Color | WW/W/CW/R/G/B/Y |
Warranty | 5 Years |
Features
-New technology to get high efficiency(170lm/w)
-Specially designed for medium-sized signs with depth more than 40-70mm
-High efficacy LED chips to ensure the max brightness
-Premium components to ensure the stability
-Great heat dissipation design to ensure long life expectancy
Color | Color Temp | Lumens | Lm/W | Input Voltage | W/Module | Waterproof |
|
Cool While | 10000K | 480±5 Im/pc | 160lm/W | DC12V/24V | 1.44-4W | IP67 |
|
Pure While | 6500K | 480±5 Im/pc | 170lm/W | DC12V/24V | 1.44-4W | IP67 |
|
Warm White | 3000K | 480±5Im/pc | 170lm/W | DC12V/24V | 1.44-4W | IP67 |

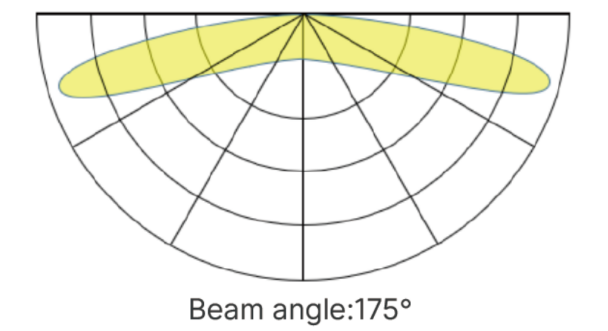

Optical Data Distribution

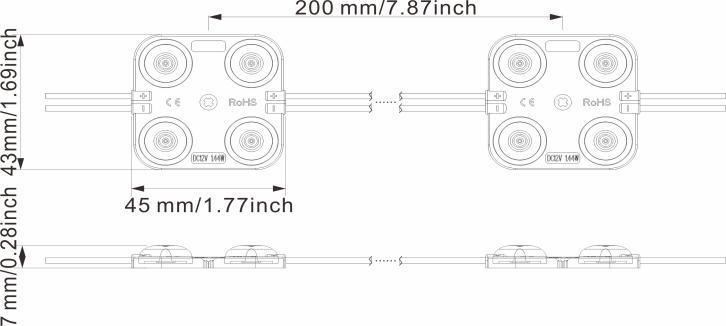

Product Dimension

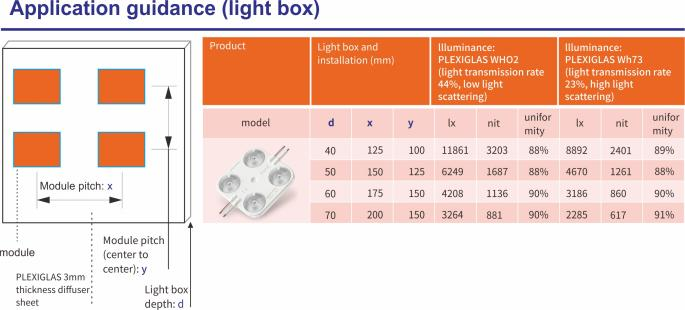

Application Notes

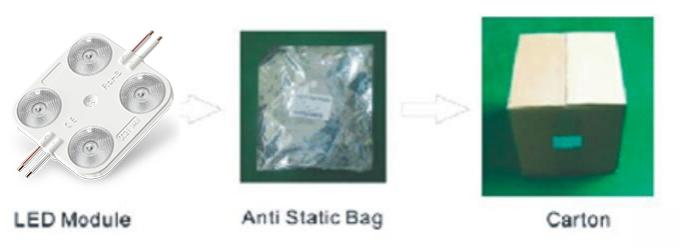

Cascade | Bag | BoX | Weight | Dimension |
20pcs | 100pcs | 1000pcs | 17.5kg | 50*35*30cm |
