SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH
Specifications

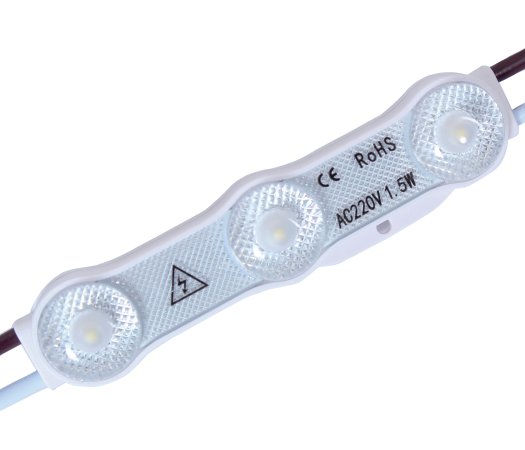

JDS Bezel-Free Series 6616B/AC120VIAC220V
Input Voltage | AC120V/220V |
Power | 1.5W/PCS |
Luminous | 80Im/W |
Beam Angle | 175° |
Waterproof Grade | IP67 |
Size | 66*16*9mm |
Operating Temp | -20°~+50℃ |
Storage Tamp. | -30°~+80℃ |
Cascade QTY | 20 mods single-ended power feed |
50 mods double-ended power feed | |
Warranty | 3 Years |
Features
-New technology to get high efficiency(110lm/w)
-Specially designed for medium-sized signs with depth more than 80-120mm
-High efficacy LED chips to ensure the max brightness -Premium components to ensure the stability
-Great heat dissipation design to ensure long life expectancy
Color | Color Temp | Luimeng | Lm/W | InputVoltage | W/Module | Waterproof |
Cool While | 10000K | 120±3 Im/pc | 80Im/W | AC120V/220V | 1.5W | IP67 |
Pure While | 6500K | 120±3 Im/pc | 80lm/W | AC120V/220V | 1.5W | IP67 |
Warm White | 3000K | 120±3lm/pc | 80lm/W | AC120V/220V | 1.5W | IP67 |

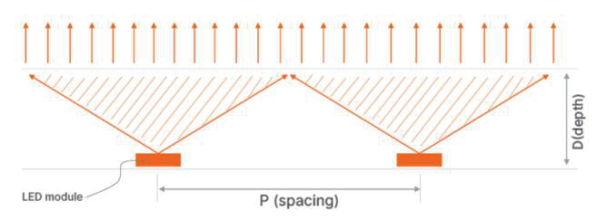

Optical Data Distribution

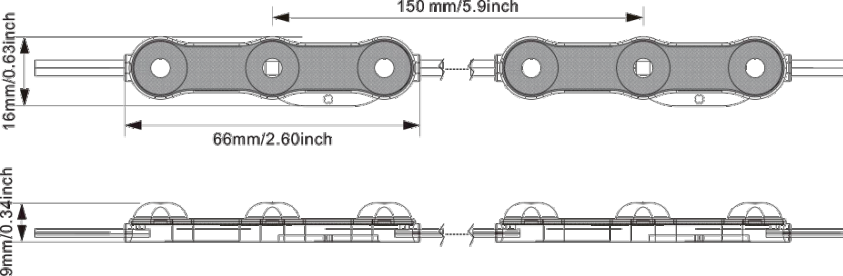

Product Dimension

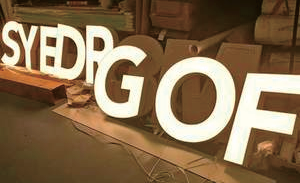

Application Notes
Cascade | Bag | BoX | Weight | Dimension |
20pcs | 100pcs | 2000pcs | 21kg | 50*35*30cm |
