SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH
Specifications

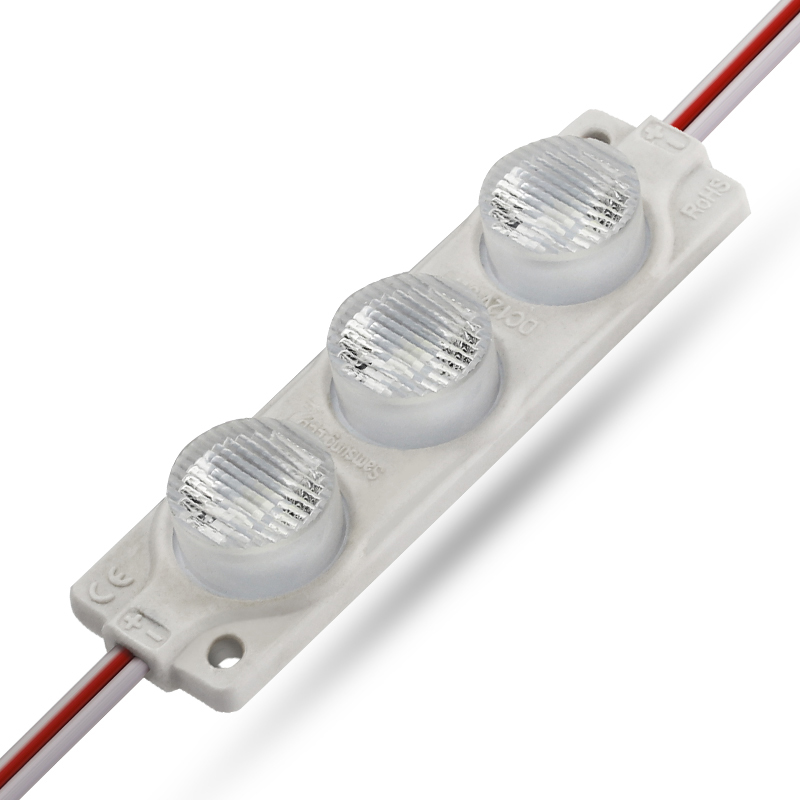

JDS Bezel-Free Series 7420V
IInput Voltage | DC12V |
Watts | 3W/PCS |
Luminous Efficacy | 100lm/W |
Beam Angle | 45*20°/65*10° |
BIN: | 3SDCM |
Modules Density | 2pcs/ft;7pcs/m |
Back Tape | 3M tape |
Waterproof Grade | IP67 |
Operating Temp. | -40°~+60℃/-13°~+140 °F |
Storage Tamp. | -40°~-70℃/-13°~+158°F |
Cascade | 20 mods single-ended power feed |
50 mods double-ended power feed | |
Color | WW/W/CW/R/G/B/Y |
Warranty | 5 Years |

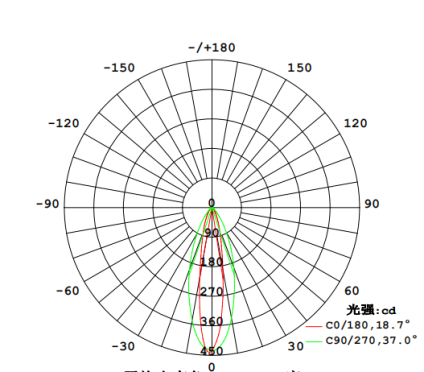

Luminous density distribution
Features
-Excellent waterproof with IP67
-5~10cm one side lighting box 6~20cm double side lighting box
-High efficacy LED chips to ensure the max brightness
-Premium components to ensure the stability
-Great heat dissipation design to ensure long life expectancy
Color | Part# | Color Temp | Module/M | Lumens | Lm/W | W/Module | Waterproof |
Cool While |
| 10000K | 7pcs/M | 300±3 Im/pc | 100lm/W | 3W | IP67 |
Pure While |
| 6500K | 7pcs/M | 300±3 Im/pc | 100lm/W | 3W | IP67 |
Warm White |
| 3000K | 7pcs/M | 300±3Im/pc | 100lm/W | 3W | IP67 |

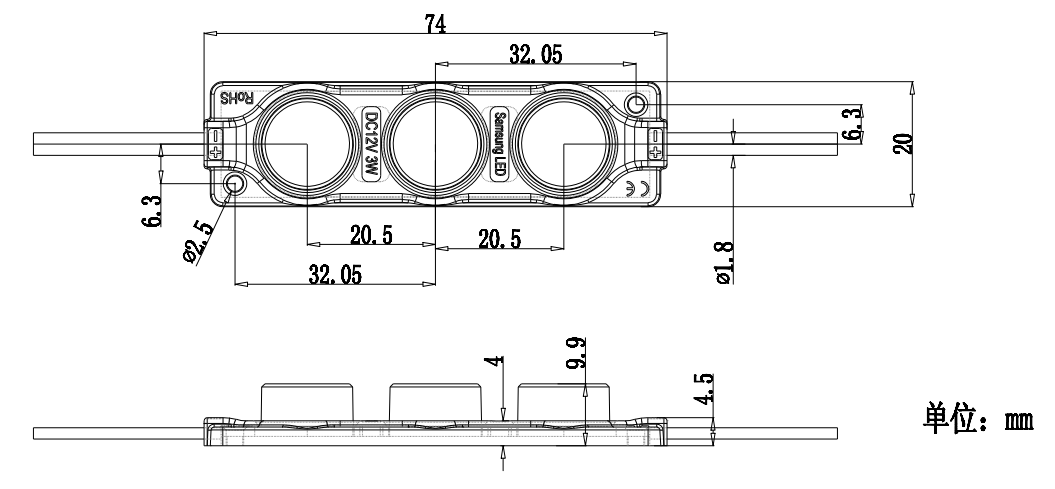

Profile Drawings
Power Supply Maximum Loading Capacity*Packaging information
PowerSupply | 35W | 60W | 100W | 150W | 240W | Cascade | Bag | Box | Weight | Dimension |
By mod | 10pcs | 16pcs | 27pcs | 40pcs | 64pc | 20pcs | 100pcs | 1500pcs | 20kg | 60*30*28cm |
By Footage | 5ft | 8ft | 13.5ft | 20ft | 32ft | *Due to voltage drop. a maximum of 50 modules can be run before | ||||
By Meter | 1.4m | 2.3m | 3.9m | 5.7m | 9.1m | Power needs to be reintroduced into theline of modules. | ||||
