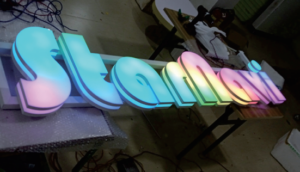

SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH
Specifications

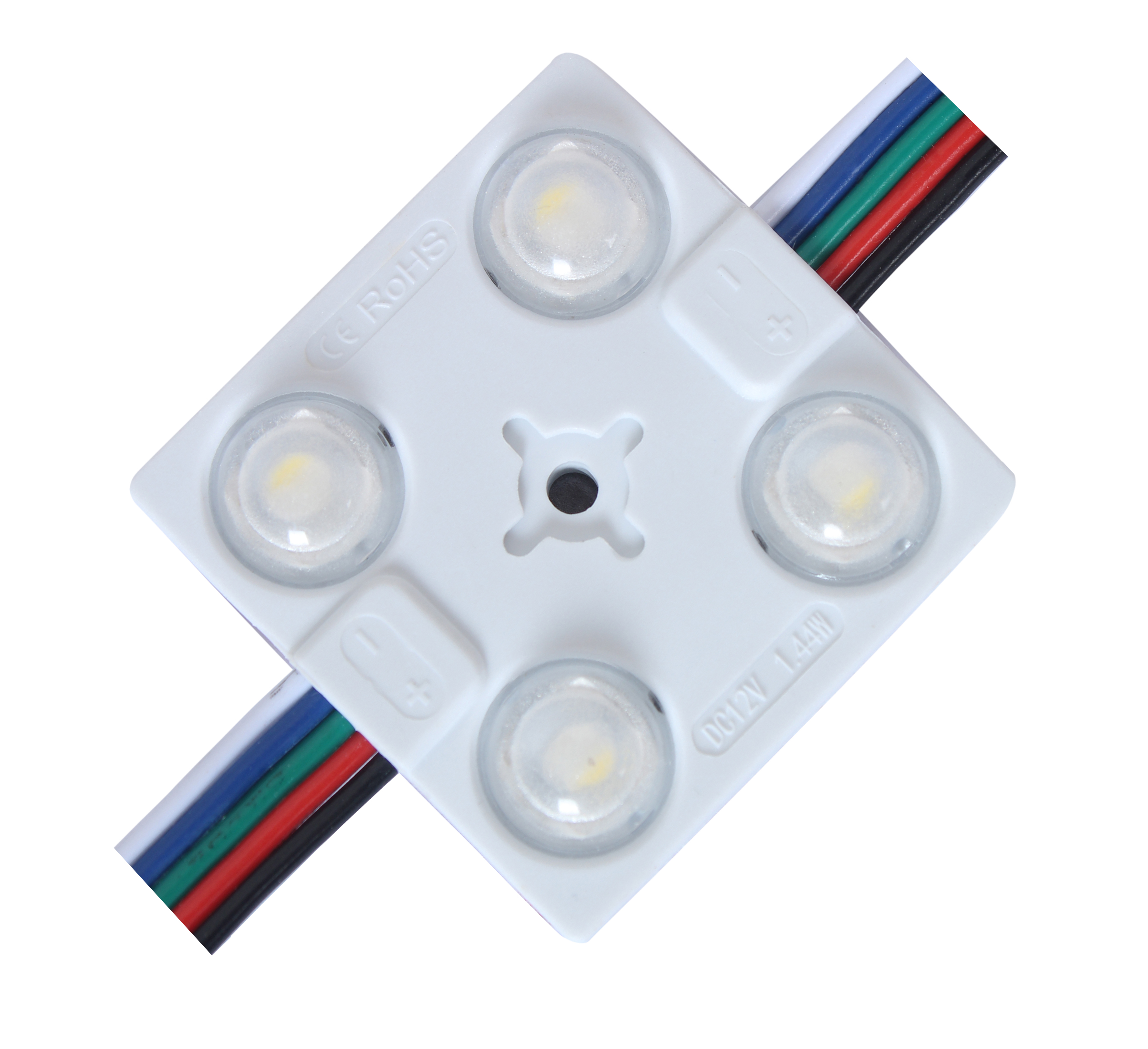

JDSBezel-Free Series 3636RGBW
lInput Voltage | DC24V/12V |
Watts | 1.44W/PCS |
Iuminous Efficacy | 100lm/W |

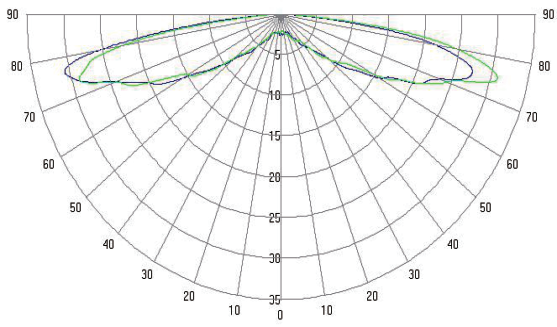

Beam Angle | 160° |
BIN: | 3SDCM |
Modules Density | 3pcs/ft;9pcs/m |
Back Tape | 3M tape |
Waterproof Grade | IP67 |
Operating Temp | -40°~+60℃/-13°~+140 F |
Storage Tamp | -40°~-70℃/-13°~+158°F |
Cascade | 20 mods single-ended power feed |
50 mods double-ended power feed | |
Warranty | 5 Years |
Features
-Excellent waterproof with IP67
-Specially designed for medium-sized signs with depth more than 15cm/6inches
-High efficacy LED chips to ensure the max brightness -Premium components to ensure the stability
-Great heat dissipation design to ensure long life expectancy

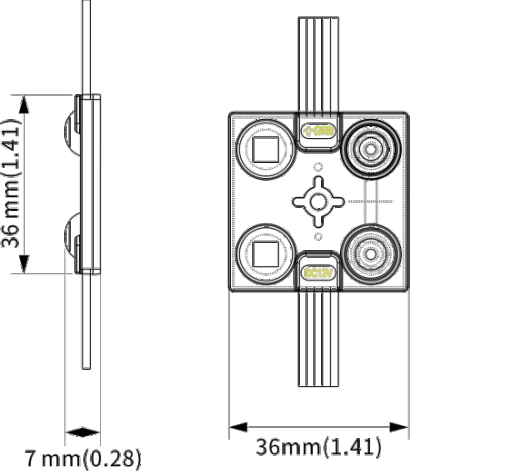

Profile Drawings
Power Supply Maximum Loading Capacity*Packaging information
PowerSupply 35W 60W 100W 150W 240W |
| Cascade Bag Box Weight Dimension | |||||
By mod By Footage | 14pcs 5.3ft | 24pcs 8.9ft | 40pcs 14.8ft | 60pcs 22ft | 96pc 35ft | 20pcs 100pcs 2000pcs 24kg 50*35*30cm *Due to voltage drop.a maximum of 50 modules can be run before | |
By Meter 1.6m 2.7m 4.5m 6.7m 10.7m | Power needs to be reintroduced into theline of modules. | ||||||
